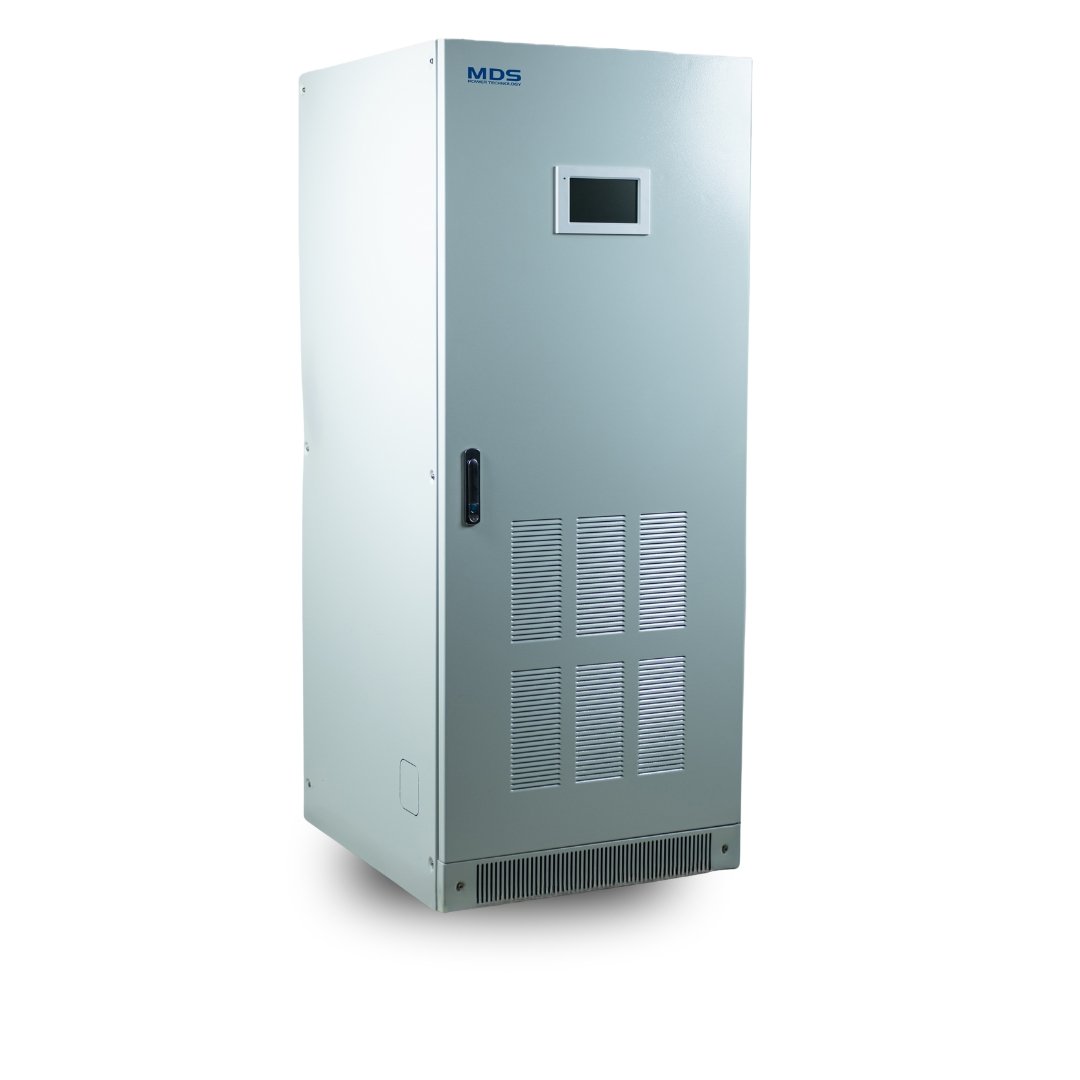

MDS Power UPS 120KVA (3 Phase)

• Online double-conversion with DSP control
• Latest IGBT rectifier technology, high input power factor (> 0.99) and low THDi (≤ 3%)
• High efficiency even at light loads
• Strong mixed load capacity and high overload capacity
• Compact and small footprint
• Unique ventilation design
• Batteries are connected directly to the bus, improving the impact resistance of UPS output
• Output isolation transformer using DZn0 winding makes strong capability with unbalanced loads
• Input and output are completely isolated for great security
• Simulated modular design makes maintenance easy and quick
• High MTBF (> 200,000 h)
• Low MTTR (< 0.5 h) • Front accessible maintenance and installation against wall allowed • Bottom and sides cable entry compatible • Generator compatible • Intelligent self-diagnosing function, superior failure protection, large capability of history records storage • Optional N+X redundancy parallel up to 6 units • Low Frequency UPS EA890120 provide maximum protection and power quality for mission critical loads, including data centers, industrial processes, telecommunications, security and electro-medical systems. It is an on-line double conversion UPS with IGBT based 3-level PWM rectifier technology, featured with high input power factor (> 0.99), low TH Di, high efficiency and built-in output isolation transformer.

All specifications are subject to change without notice to ensure continuous product improvement and adaptation to the latest technological standards. Custom-made specifications are also acceptable to meet specific client or application requirements. This product is designed for use in industrial, commercial, financial, rail transit, and other industry applications where reliable power protection is essential.
